Under-Raised-Floor Fiber Optic Patch Panel

  • under-raised-floor-fiber-optic-patch-panel-dscf0086
  • under-raised-floor-fiber-optic-patch-panel-dscf0082
  • under-raised-floor-fiber-optic-patch-panel-dscf0070
  • under-raised-floor-fiber-optic-patch-panel-dscf0087
  • under-raised-floor-fiber-optic-patch-panel-dscf0086
  • under-raised-floor-fiber-optic-patch-panel-dscf0082
  • under-raised-floor-fiber-optic-patch-panel-dscf0070
  • under-raised-floor-fiber-optic-patch-panel-dscf0087

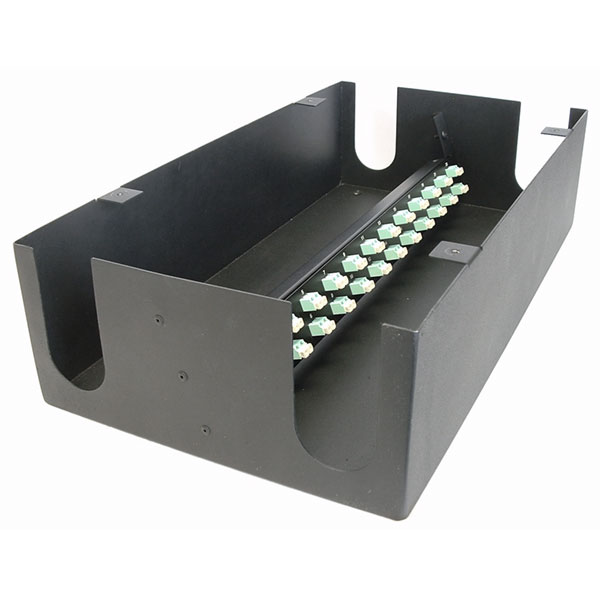

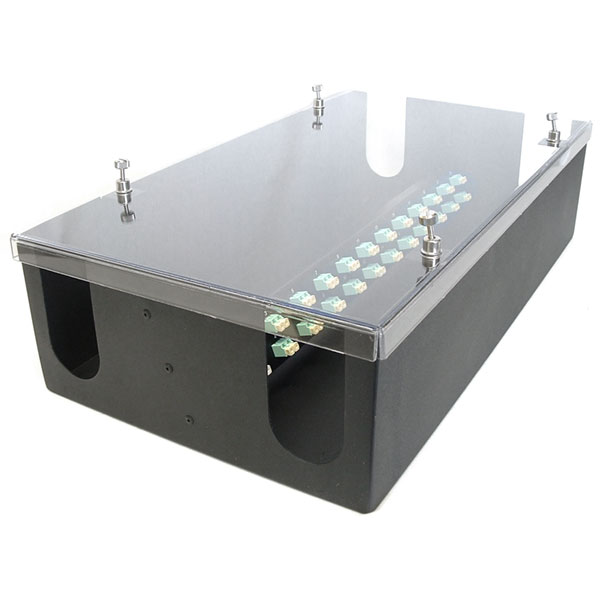

Under raised-floor fiber optic patch panels:

  • Accepts trunk cables, patch cords, and ribbon array harness assemblies
  • Available in 96 and 192 channel capacity configurations
    • 96 channel dimensions: 20" x 11" x 5

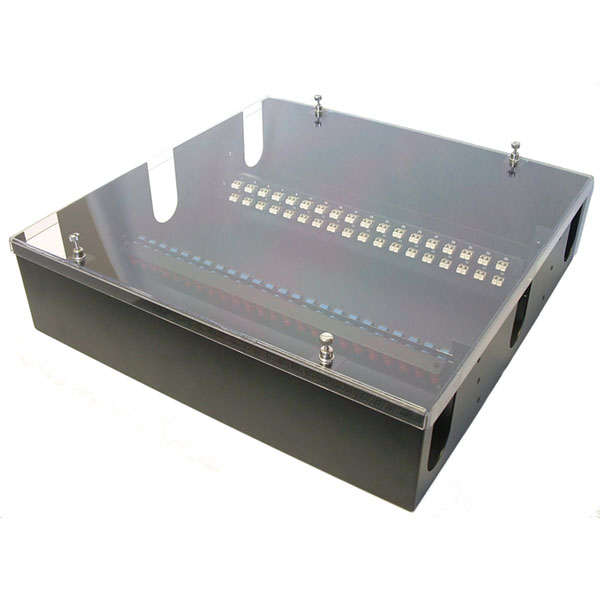

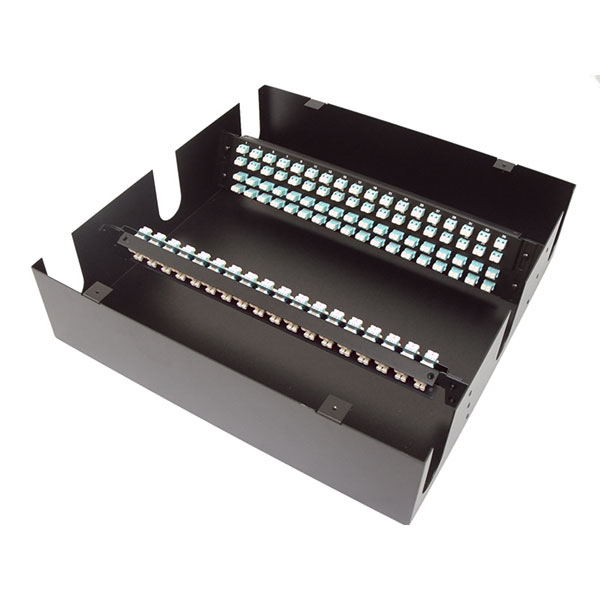

    • 192 channel dimensions: 20" x 20" x 5"
    • 288 channel dimensions: 20" x 20" x 5" (ribbon array version)
  • Integrated cable management to house ribbon array harness
  • Internal panels are adjustable (multiple tilt angles) for ease of cabling
  • Multimode and single-mode configurations available:
    • LC
    • MU
    • MT-RJ (MM only)
    • SC
    • LC Quad
    • ESCON
  • Available configurations include both MP and MTP ribbon array
  • Mounting types available:
    • pedestal bracket
    • directly to the raised floor
  • All products are RFID asset management ready
