Single Body Fiber Optic Patch Cords

  • single-body-fiber-optic-patch-cords-dscf0031
  • single-body-fiber-optic-patch-cords-dscf0028
  • single-body-fiber-optic-patch-cords-dscf0034
  • single-body-fiber-optic-patch-cords-dscf0031
  • single-body-fiber-optic-patch-cords-dscf0028
  • single-body-fiber-optic-patch-cords-dscf0034

Patch cords are available in the following connector styles:

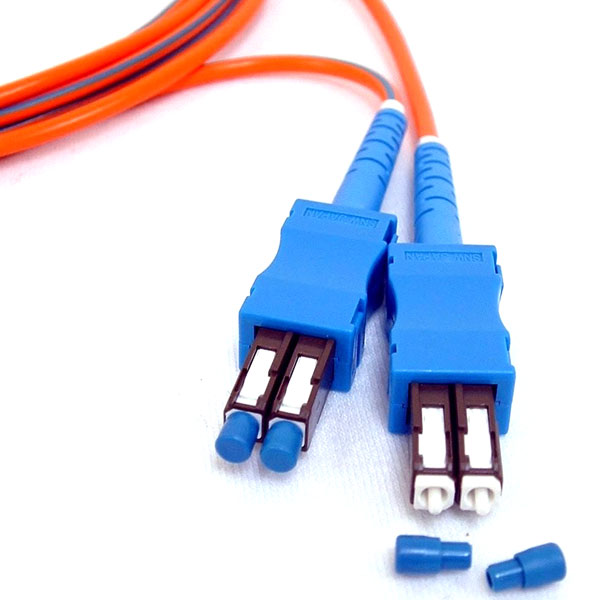

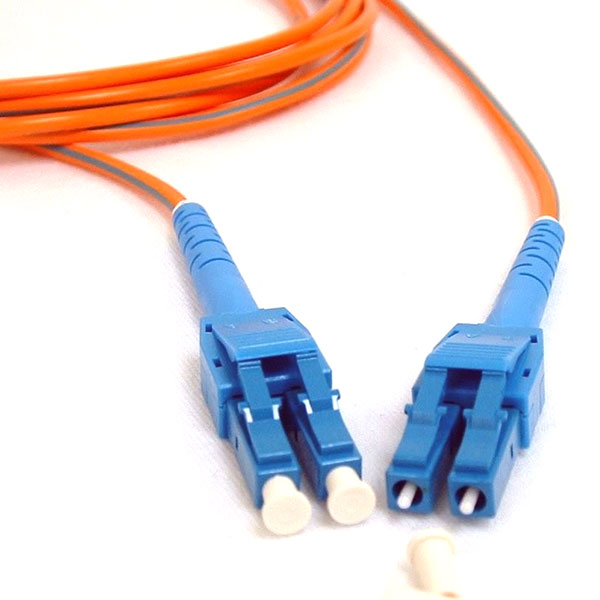

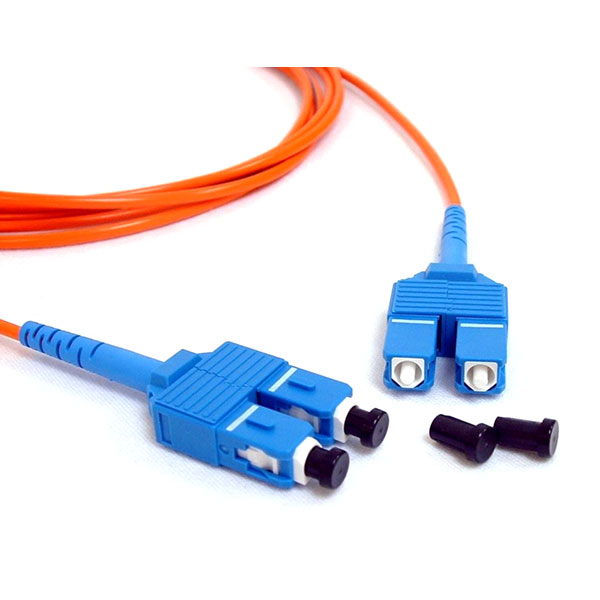

  • LC, SC, and MU single-body construction for ease of cable management
  • Improved cable management (cables are ½ the size of standard zip jumper cables)

Patch cords are available in the following fiber core sizes and grades:

  • Multimode 62.5/125 and 50/125 CL-600
  • Laser enhanced 50/125 10Gig @ 300 meters & 10Gig @ 550 meters
  • Single-mode SMF-28e
  • Bend tolerant SR15
  • DFX construction in 2.9mm, 2.0mm, and 1.6mm outside diameter
  • Available in OFNR (riser) and OFNP (plenum) construction
  • All patch cords are custom lengths
  • 100% tested for continuity, polarity, and link loss
  • All cables are labeled (custom label types are available)
  • All products are RFID asset management ready

Note: All LC, MU, and SC couplers are constructed with single mode high quality alignment ceramic sleeves for optimal performance.
