Ribbon Array Modular Cassette Fiber Optic Patch Panel

  • ribbon-array-modular-cassette-fiber-optic-patch-panel-dscf0047
  • ribbon-array-modular-cassette-fiber-optic-patch-panel-dscf0035
  • ribbon-array-modular-cassette-fiber-optic-patch-panel-dscf0048
  • ribbon-array-modular-cassette-fiber-optic-patch-panel-dscf0047
  • ribbon-array-modular-cassette-fiber-optic-patch-panel-dscf0035
  • ribbon-array-modular-cassette-fiber-optic-patch-panel-dscf0048

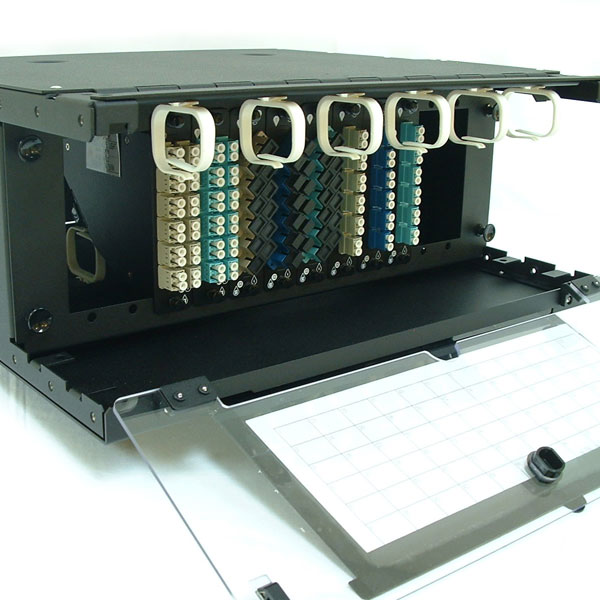

Ribbon array modular cassette fiber optic patch panel:

  • 4U patch panel housing
  • Dimensions: 7"H x 19"W x 12"D
  • 19", 23", or 24" mounting available
  • Standard housing colors are black or white
  • See thru Plexiglas front cover (locking metal cover optional)
  • Integrated pull out channel ID documentation sheet
  • Capacity up to 144 channels (12 modular cassettes)
  • Cassette size conforms to industry standards

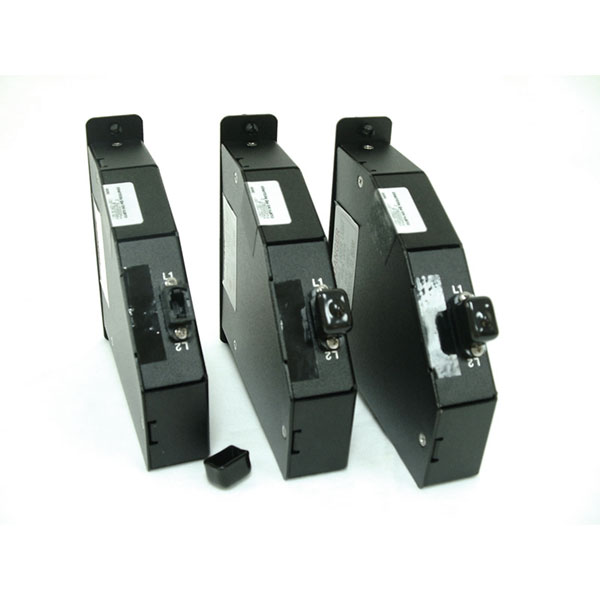

  • MTP ribbon array modules available in 6 or 12 channel male or female configurations
  • All products are RFID Asset Management ready

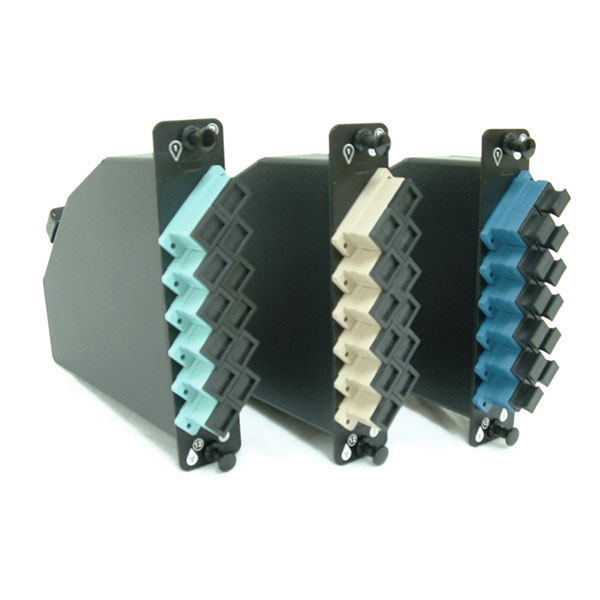

  • Coupler modules available:
    • LC Duplex: 6 channels per cassette
    • LC Quad: 12 channels per cassette
    • MT-RJ: 6 channels per cassette MM (male or female)
    • MU Duplex: 6 channels per cassette
    • SC Duplex: 6 channels per cassette
    • ST: 6 channels per cassette MM & SM
    • ESCON: 3 channels per cassette MM & SM
  • Cassette polarity is denoted by push pin color:
    • Black: Straight A-A, B-B
    • White: Crossed A-B, B-A

Options:

  • Locking front cover
  • Custom silk screening
  • Cable management devices for organizing cables entering and exiting the patch panel
  • Cassettes load from front for easy access
  • Color coded couplers available: Blue, Aqua, Beige, Black

Note: All LC, MU, and SC couplers are constructed with single mode high quality alignment ceramic sleeves for optimal performance.
