Ribbon array harness coupling block:

  • 6, 12, 24, and 54 port configurations available

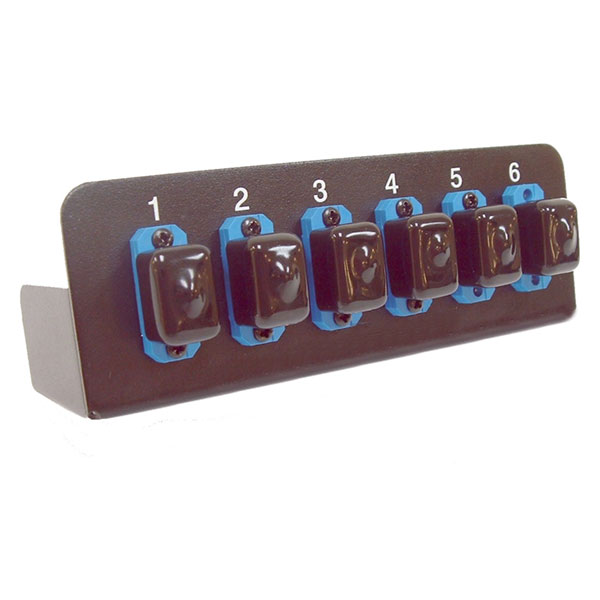

  • The 6 port coupler has 36 channel and 72 channel capacities

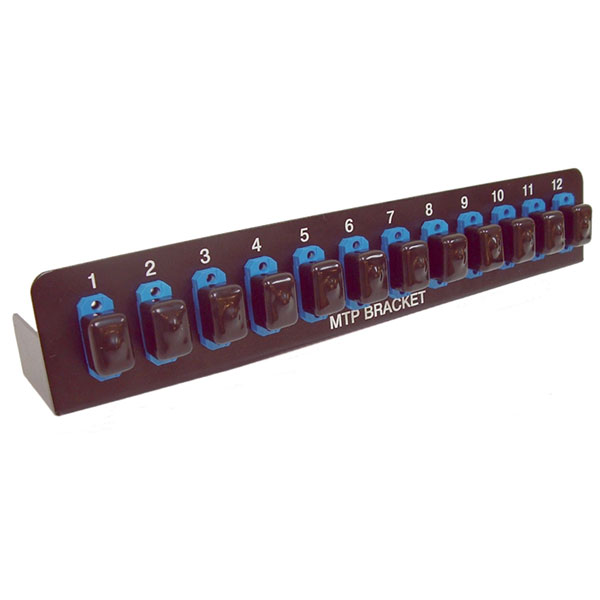

  • The 12 port coupler has 72 channel and 144 channel capacities
  • Couplers provide MTP and MP harness connectivity to trunk cables
  • May be used to extend (couple) ribbon array trunk cables
  • MTP couplers accept 12, 24, and 72 fiber MTP ferrules
  • MTP & MP couplers are available in black (ESCON connectivity), or blue (SAN connectivity)
  • The couplers may be mounted in under floor boxes
  • Custom port configurations are available
  • Keyed MTP options are available
  • All products are RFID asset management ready

Options:

  • Custom silk screening
  • Custom port counts
  • Mounting kit for use on pedestal brackets
