Modular strip fiber optic patch panel:

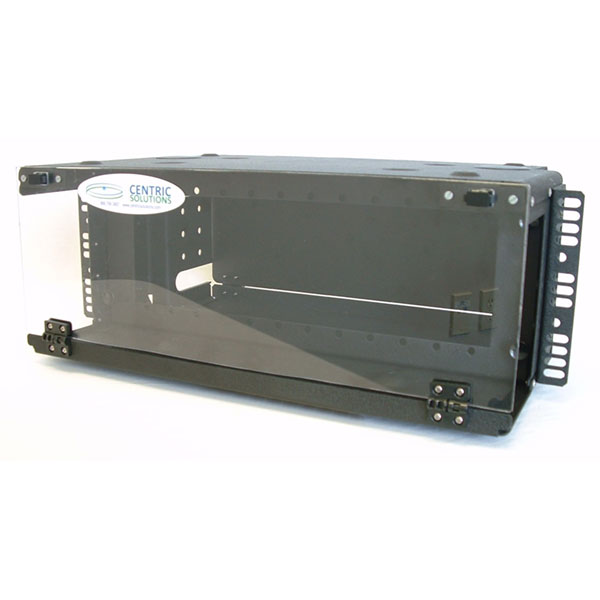

  • 4U patch panel housing
  • Dimensions 7"H x 19"W x 15.5"D
  • 19", 23", or 24" mounting available
  • Standard housing colors are black or white
  • See thru Plexiglas front cover (locking metal cover optional)
  • Integrated pull out channel ID documentation sheet

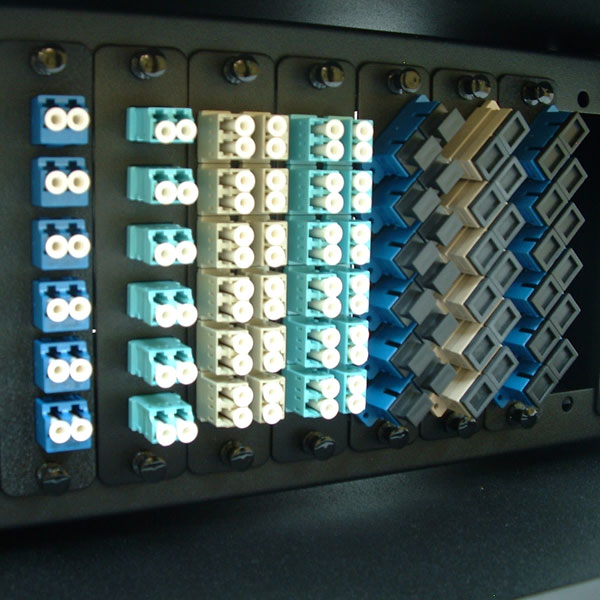

  • Capacity up to 144 channels (12 modular strips)
  • Strips conform to industry standard spacing
  • All products are RFID asset management ready

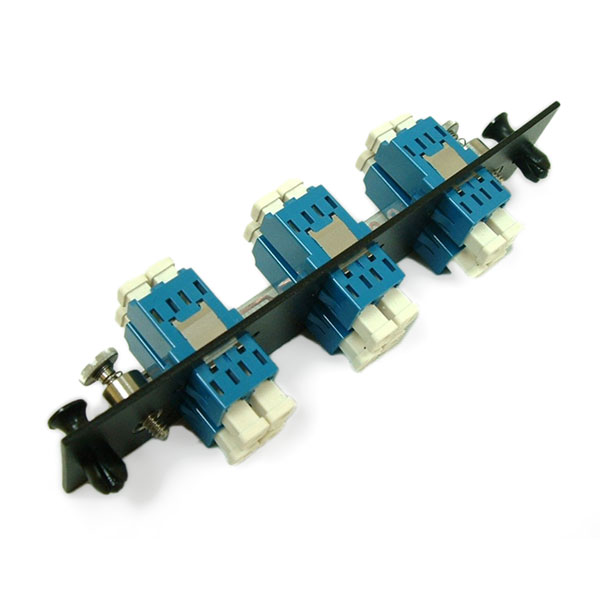

  • Coupler strips available:
    • LC Duplex: 6 channels per strip MM & SM
    • LC Quad: 12 channels per strip MM & SM
    • MT-RJ: 6 channels per strip MM
    • MU Duplex: 6 channels per strip MM & SM
    • SC Duplex: 6 channels per strip MM & SM
    • ST: 6 channels per strip MM & SM
    • ESCON: 3 channels per strip MM & SM
  • Ribbon array modular strips available:
    • MP: 6 couplers per strip MM
    • MTP: 6 couplers per strip MM & SM

Options:

  • Locking front cover
  • Custom silk screening
  • Cable management devices for organizing cables entering and exiting the patch panel
  • Color coded couplers available: Blue, Lavender, Aqua, Beige, Black


Note: All LC, MU, and SC couplers are constructed with single mode high quality alignment ceramic sleeves for optimal performance.
