Fiber Optic Patch Cords

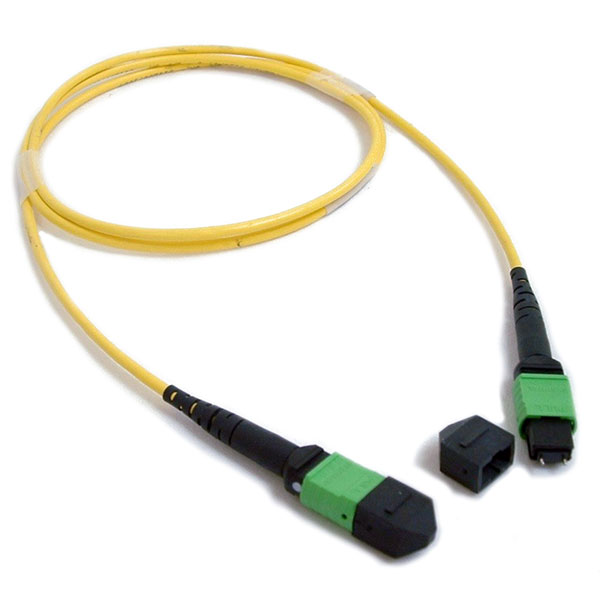

  • fiber-optic-patch-cords-dscf0079

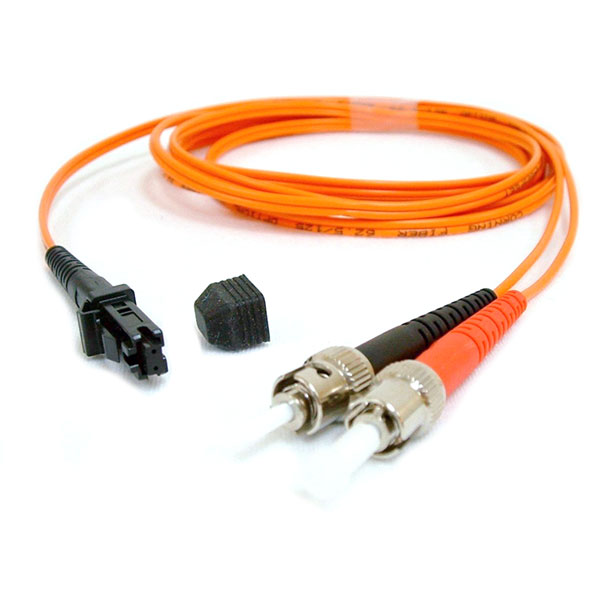

  • fiber-optic-patch-cords-dscf0072

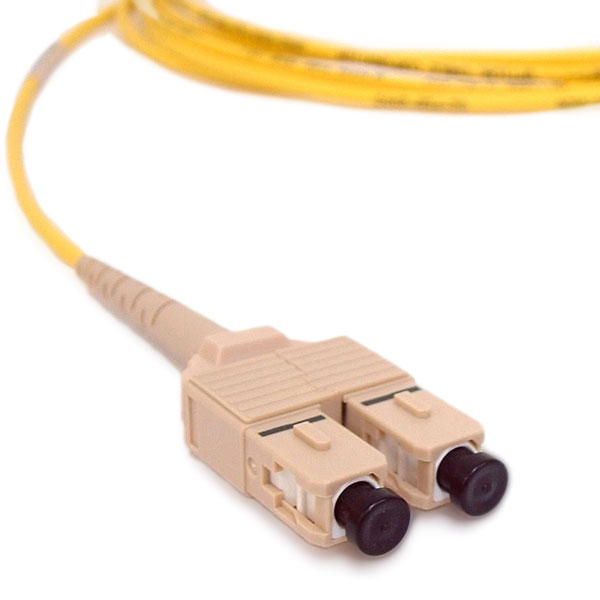

  • fiber-optic-patch-cords-dscf0049
  • fiber-optic-patch-cords-dscf0079
  • fiber-optic-patch-cords-dscf0072
  • fiber-optic-patch-cords-dscf0049

Patch cords are available in the following connector styles:

  • LC, SC, and MU single-body construction (for ease of cable management)
  • Standard duplex LC, SC, MT-RJ, MU, and ESCON
  • Ribbon array MTP 12 or 24 fiber ferrules and MP 12 fiber ferrules
  • MT-RJ and MTP available in male or female configurations

Patch cords are available in the following fiber core sizes and grades:

  • Multimode 62.5/125 and 50/125 CL-600
  • Laser enhanced 50/125 10Gig @ 300 meters & 10Gig @ 550 meters
  • Single-mode SMF-28e
  • Bend tolerant SR15
  • Zip duplex and DFX construction in 2.9mm, 2.0mm, 1.6mm O.D.

Options:

  • Available in OFNR (riser) or OFNP (plenum) construction
  • Available pre-installed in inner duct
  • Different colors and boots available
  • All patch cords are custom lengths
  • 100% tested for continuity, polarity, and link loss
  • All cables are labeled (custom label types are available)


Note: All LC, MU, and SC couplers are constructed with single mode high quality alignment ceramic sleeves for optimal performance.
