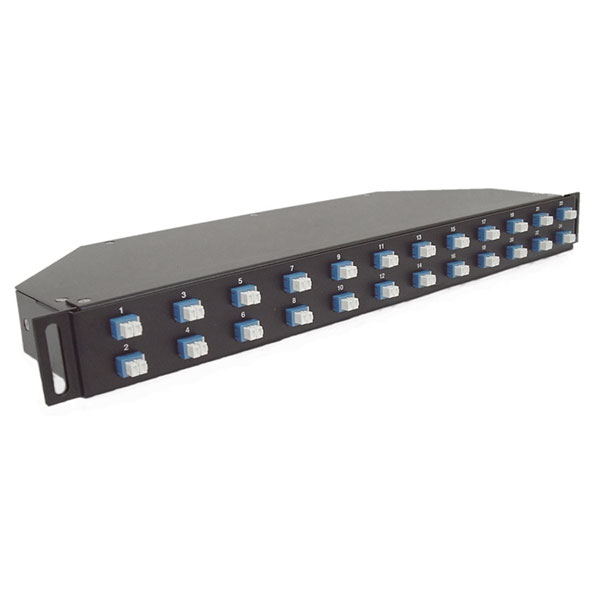

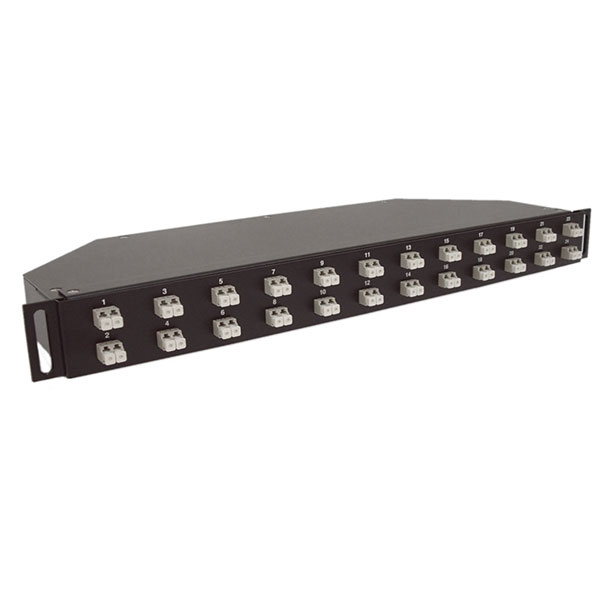

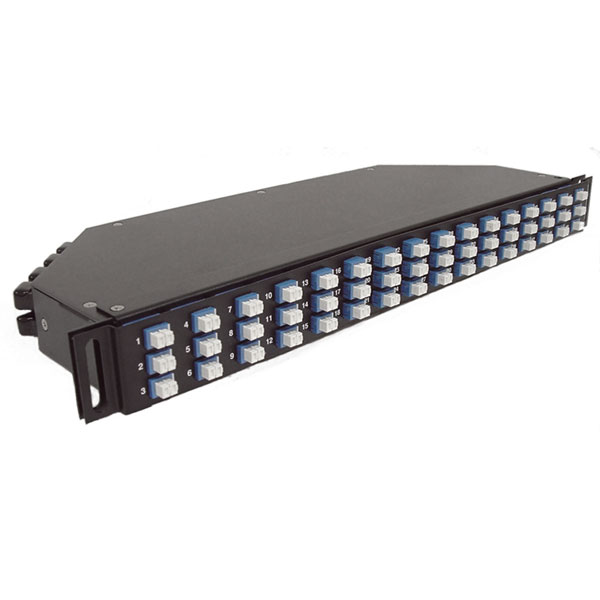

1U ribbon array fiber optic patch panel:

  • 1U patch panel housing
  • Dimensions: 1.75"H x 19"W x 6"D
  • 19", 23", or 24" mounting available
  • Standard colors are black and white
  • Capacity up to 48 channels
  • All products are RFID asset management ready

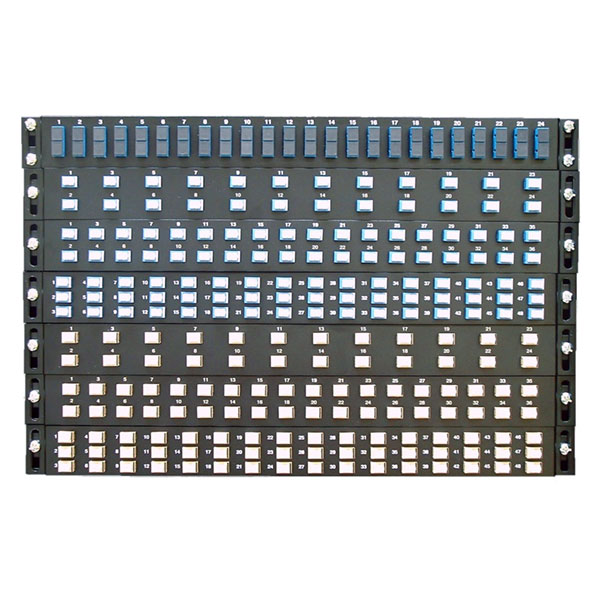

  • Coupler types available:
    • LC Duplex: 24, 36 or 48 channels
    • LC Quad: 24 or 48 channels
    • MT-RJ: 24, 36 or 48 channels
    • MU Duplex: 24, 36 or 48 channels
    • SC Duplex: 12, 18 or 24 channels
    • ESCON: 12, 18 or 24 channels

Options:

  • Custom silk screening
  • Cable management devices for organizing cables entering and exiting the patch panel
  • Color coded couplers available: Blue, Aqua, Beige, Black

Notes:
1) Silk screen overlay system allows patch panel ports to be easily re-labeled.
2) All LC, MU, and SC couplers are constructed with single mode high quality alignment ceramic sleeves for optimal performance.
