EQ Series Cabinet

  • cabinet-eq-series-mag-7-pic-5
  • cabinet-eq-series-mag-7-pic-2
  • cabinet-eq-series-mag-7-pic-8
  • cabinet-eq-series-mag-7-pic-5
  • cabinet-eq-series-mag-7-pic-2
  • cabinet-eq-series-mag-7-pic-8

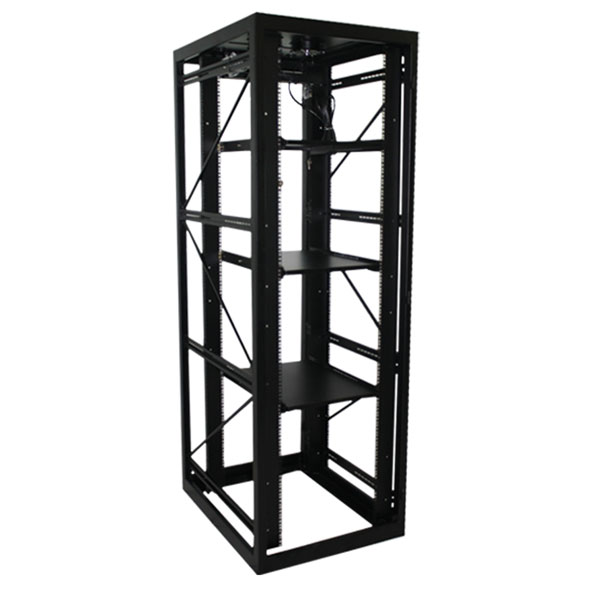

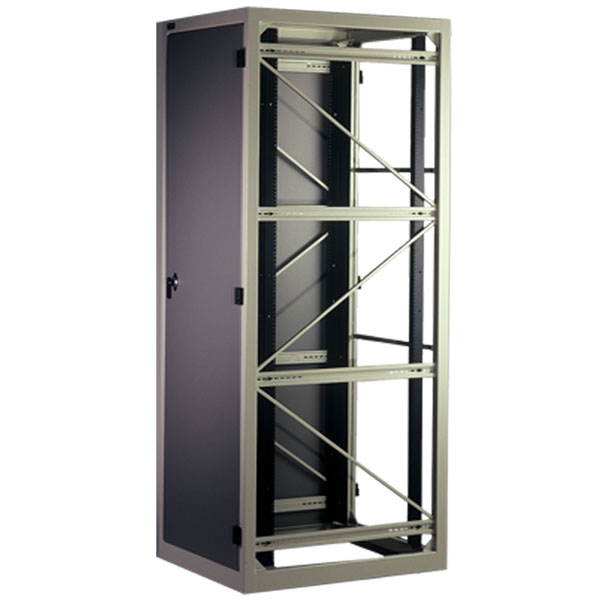

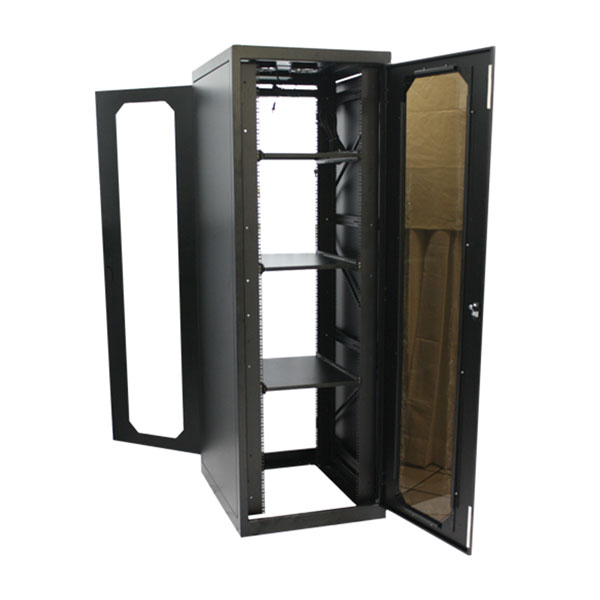

EQ (Earthquake) Series Cabinet - tested by NEBS and designed to withstand a 7.1 earthquake:

  • 19" or 23" rackable enclosure
  • 45U EIA rackable
  • Outside dimensions: 85"H x 28"W x 36"D
  • Inside dimensions: 78.5"H x 25.5"W x 33.5"D
  • Capacity: 700 pounds
  • Rails: 19" 10/32" tapped, 19" universal
  • Doors: mesh, solid, or vented
  • Fully secured, no exposed hardware
  • Zero clearance frame coupling
  • Cable access holes
  • Additional accessories available
  • Variety of colors
  • Ships fully assembled

Fans:

  • Fans available in top mount and rack mount configurations (120 cfm)

Lighting Options:

  • Magnetic mount 120V
  • LED light (USB powered)

Power Cords:

  • Available in 120V and 240V, 15A and 20A
  • From 4 to 16 outlets per strip
  • Vertical and horizontal mounting (with surge and fuse protection options)

Drawers:

  • Sliding drawers available in open and closed top configurations (19" and 23")
  • Black finish

Filler (blank plates):

  • Black finish (available in 19" and 23" mounting)
  • Available in 1U increments (up to 12U)

Rails:

  • Mounting angle rails (heavy duty black finish)

Shelves & Trays:

  • Fixed & sliding styles available in solid and vented construction (19" and 23")
  • Black finish
